1100°C Opening Monozone/multizone Tube furnace for bending, traction, compression, creep

1100°C Opening Monozone/multizone Tube furnace for bending, traction, compression, creep

Discover 1100°C Opening Monozone/multizone Tube furnace for bending, traction, compression, creep. Our engineering expertise in heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a solution that is perfectly adapted to your needs.
We adapt to your expectations by providing you with numerous solutions for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Atmosphère de travail

Process

Air

Air

Température Maximale

Maximum processing temperature

Jusqu’à 1600°C

Up to 1600°C

Application

Application

Flexion, Traction, compression et fluage

Flexion, traction, compression & creep

Zone de chauffe

Heating zone



*sous réserve compatibilité matériaux, gaz, température

*subject to material, gas and temperature compatibility

Monozone ou Multizone

Monozone or multizone

Dimensionnement

Sizing

Sur consultation
Upon Request
Caractéristiques (Fr) Specifications (Eng)

Multiprogramme + enregistreur

Multiprogram + recorder

Supervision

HM sur pc standard

HCI on standard PC

Autres options

Gaz sec ou humide : régulation point de rosée

Dry or wet gas: dew point control

Passage pour extensomètre par contact

Passage for contact extensometer

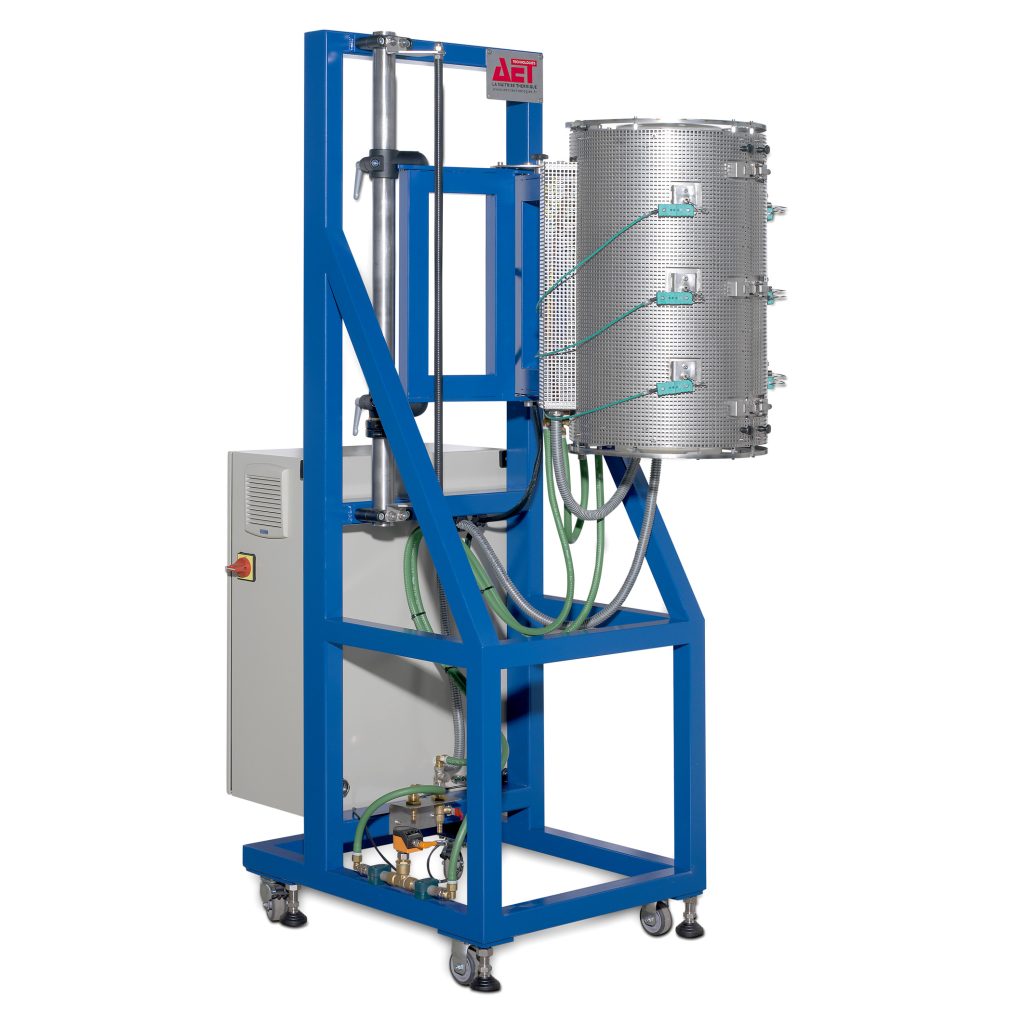

Support mécanique autonome avec possibilité de régler la hauteur du four par rapport à la machine d’essai mécanique

Stand-alone mechanical support with the possibility to adjust the height of the oven in relation to the mechanical testing machine
Bouchons thermiques haut et bas
Top and bottom thermal plugs

Coffret électrique de régulation

Electrical control box
Examples

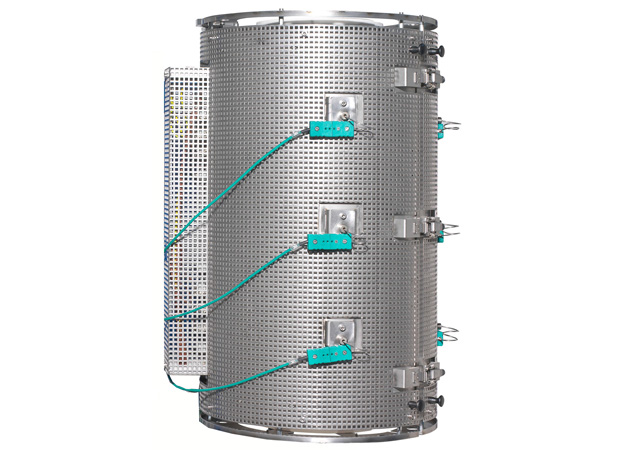

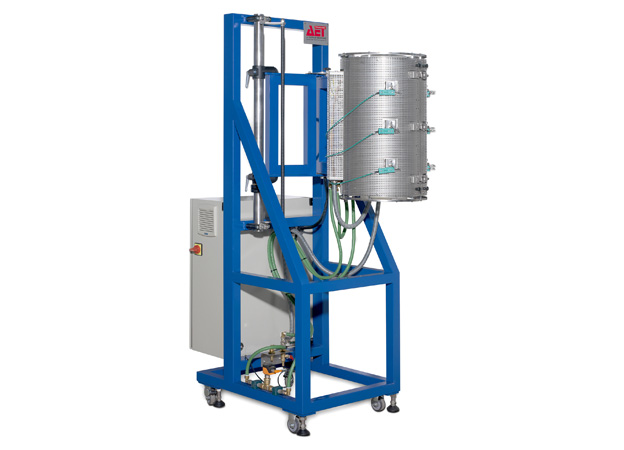

Opening Monozone/multizone Tube furnace 1100°C under air for bending, traction, compression, creep





Température Maximale

Maximum Temperature

1100°C 1100°C
Zone de chauffe indépendantes

Heating zone

3 Zones 3 Zones
Application

Application

Flexion, Traction, compression et fluage Bending, traction, compression, creep
Accès

Access

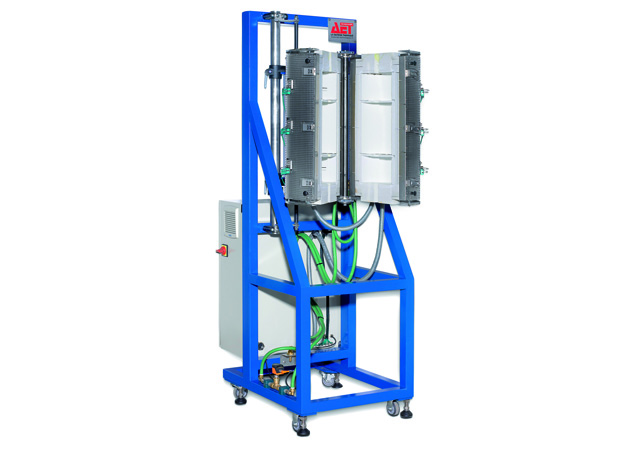

Ouvrant Open
Volume intérieur utile (D x H mm)

Sizing

90 x 365 mm 90 x 365 mm
Ø Extérieur

External Ø

350 mm 350 mm
Option Avec ou sans coffret de régulation With or without control box
aet-four-tubulaire-monozone-multizone-sous-air-1100c-ouvrant-flexion-traction-compression-et-fluage-ferme
