Multiprocess Top hat furnace for long load

Multiprocess Top hat furnace for long load

Discover our Multiprocess Top hat furnace for long load. Our engineering expertise in heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a solution that is perfectly adapted to your needs.
We adapt to your expectations by providing you with numerous solutions for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Atmosphère de travail

Process

Air

Atmosphère contrôlé

vide

*selon température et chambre process

Air

Controlled atmosphere

vacuum

*depending on temperature and process chamber

Température Maximale

Maximum processing temperature

Jusqu’à 1200°C

Up to 1200°C

Chambre Process selon température

Chamber process

Métallique, quartz, SiC, céramique ou graphite

Metallic, quartz, SiC, ceramic or graphite

Type de gaz process possible*

Process gas type*



*sous réserve compatibilité matériaux, gaz, température

*subject to material, gas and temperature compatibility

Air,

azote N2,

argon Ar,

Hydrogène H2



Autre gaz réducteur sur demande

Air,

Nitrogen N2,

argon Ar,

hydrogen H2



Other reducing gases on request

Pression chambre process possible

Process chamber pressure

Balayage gazeux en légère surpression

Régulation de pression inférieur à la Pression Atmosphérique

Sous vide

Gas sweep in slight overpressure

Pressure regulation below atmospheric pressure

Vacuum

Dimensionnement volume utile

Sizing

Jusqu’à 50L

Up to 50L

Volume autre

Further sizing

Sur consultation
Upon request

Déplacement de la cloche

Top Hat movement

Manuel ou motorisé
Manual or motorised

Déplacement du four

Furnace movement

Manuel ou motorisé

Manual or motorised

Inclus

Included

Régulateur programmateur classe 0.1

Programmable controller class 0.1

Sécurité

Security

Détection de surchauffe

Overheating detection

Ouverture porte

Furnace opening

Caractéristiques (Fr) Specifications (Eng)

Multiprogramme + enregistreur

Multiprogram + recorder

Supervision

HM sur pc standard

HCI on standard PC

Autres options

Gaz sec ou humide : régulation point de rosée

Dry or wet gas: dew point control

Examples

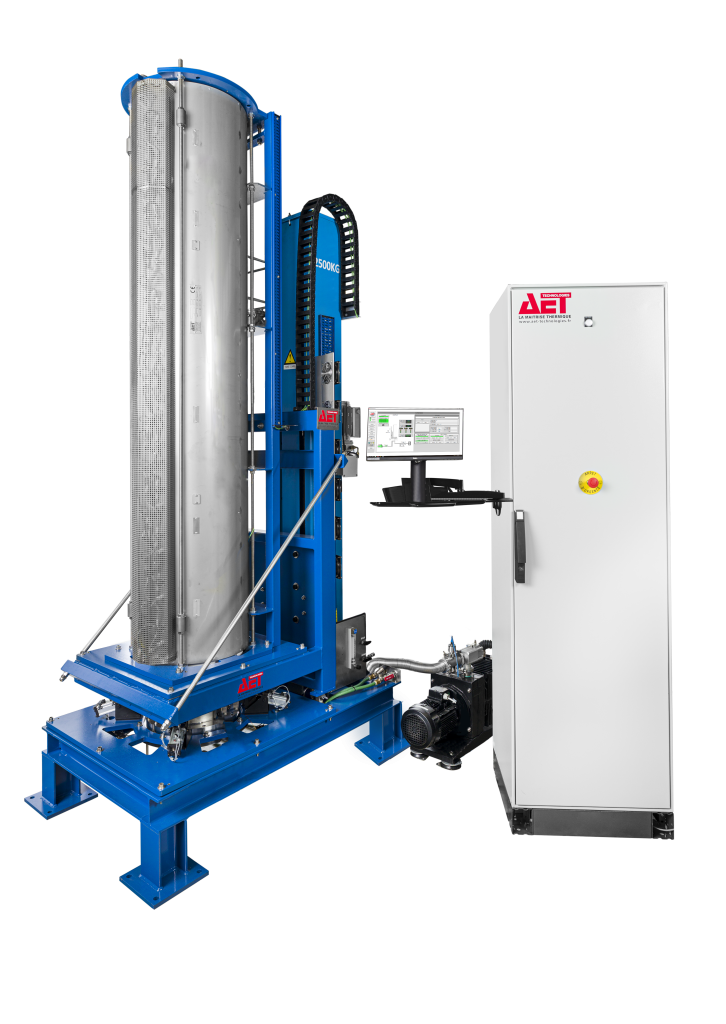

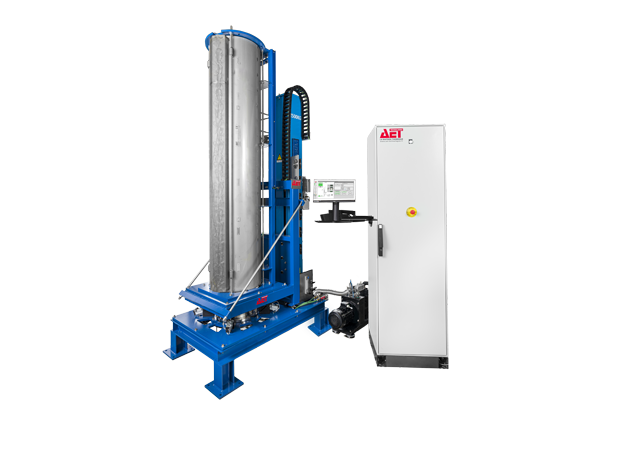

Multiprocess Top hat furnace for long load



Atmosphère de travail

Process

Air, gas neutre ou vide Air, neutral gas or vacuum
Pression chambre process

Process chamber pressure

En légère surpression ou vide In slight overpressure or vacuum
Température Maximale

Maximum temperature

650°C 650°
Montée en température

Temperature rise speed

Contrôlée < à 10°C/min Controlled < to 10°C/min
Refroidissement

Cooling speed

Accéléré : Déplacement du four à chaud  Accelerated : Hot furnace movement
Chambre Process

Process chamber

Métallique Metallic
Dimension zone utile (Ø x H mm)

Sizing

310 x 1200 mm 310 x 1200 mm
Déplacement de la cloche

Top hat movement

Motorisé Motorised
Déplacement du four

Furnace movement

Motorisé Motorised
Pilotage

Control

IHM sur pc standard HCI on standard PC
aet-four-a-cloche-multiprocess-charge-longue
