1100°C Air Monozone/multizone Tube furnace

1100°C Air Monozone/multizone Tube furnace

Discover our 1100°C Air Monozone/multizone Tube furnace. Our engineering expertise in heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a solution that is perfectly adapted to your needs.
We adapt to your expectations by providing you with numerous solutions for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Atmosphère de travail

Process

Air

Air

Température Maximale

Maximum processing temperature

Jusqu’à 1600°C

Up to 1600°C

Application

Application

Flexion, Traction, compression et fluage

Flexion, traction, compression & creep

Zone de chauffe

Heating zone



*sous réserve compatibilité matériaux, gaz, température

*subject to material, gas and temperature compatibility

Monozone ou Multizone

Monozone or multizone

Accès

Access

Ouvrant ou non Ouvrant
Open or non-open

Dimensionnement

Sizing

Sur consultation
Upon Request



Caractéristiques (Fr) Specifications (Eng)

Multiprogramme + enregistreur

Multiprogram + recorder

Supervision

HM sur pc standard

HCI on standard PC

Autres options

Gaz sec ou humide : régulation point de rosée

Dry or wet gas: dew point control

Passage pour extensomètre par contact

Passage for contact extensometer

Support mécanique autonome avec possibilité de régler la hauteur du four par rapport à la machine d’essai mécanique

Stand-alone mechanical support with the possibility to adjust the height of the oven in relation to the mechanical testing machine

Bouchons thermiques haut et bas

Top and bottom thermal plugs

Coffret électrique de régulation

Electrical control box

Examples

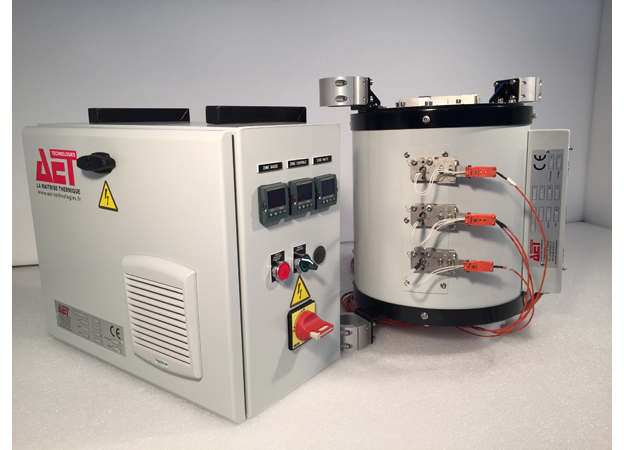

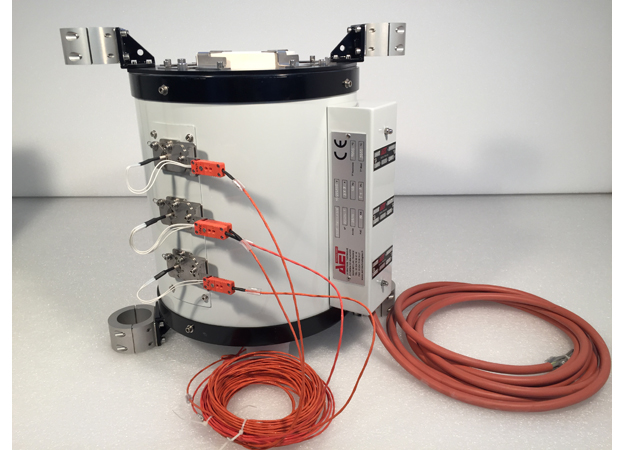

1100°C Air Monozone/multizone Tube furnace



Température Maximale

Maximum Temperature

1100°C 1100°C
Zone de chauffe indépendantes

Heating zone

3 zones 3 zones
Application

Application

Fluage et traction Creep & traction
Accès

Access

Non ouvrant Non-open
Volume intérieur utile (D x H mm)

Sizing

65 x 440mm / 85 x 440mm 65 x 440mm / 85 x 440mm
Ø Extérieur

External Ø

210 mm 210 mm
Option Avec ou sans coffret de régulation With or without control box
