Rapid Thermal Process furnace 1900°C and controled atmosphere furnace 1100°C

Rapid Thermal Process furnace 1900°C and controled atmosphere furnace 1100°C

Discover our rapid Thermal Process furnace 1900°C and controled atmosphere furnace 1100°C. Our engineering expertise in heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a solution that is perfectly adapted to your needs.
We adapt to your expectations by providing you with numerous solutions for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Atmosphère de travail*

Process*

Air

Atmosphère contrôlé

vide

*selon température et chambre process

Air

Controlled atmosphere

vacuum

*depending on temperature and process chamber

Température Maximale

Maximum temperature

Jusqu’à 2200°C

Up to 2200°C

Chambre Process selon température

Chamber process

Métallique, quartz, SiC, céramique ou graphite

Metallic, quartz, SiC, ceramic or graphite

Type de gaz process possible*

Process gas type*



*sous réserve compatibilité matériaux, gaz, température

*subject to material, gas and temperature compatibility

Air,

azote N2,

argon Ar,

Hydrogène H2



Autre gaz réducteur sur demande

Air,

Nitrogen N2,

argon Ar,

hydrogen H2



Other reducing gases on request

Pression chambre process possible

Process chamber pressure

Balayage gazeux en légère surpression

Régulation de pression inférieur à la Pression Atmosphérique

Sous vide

Gas sweep in slight overpressure

Pressure regulation below atmospheric pressure

Vacuum

Dimensionnement volume utile

Sizing

Jusqu’à 50L

Up to 50L

Volume autre

Further sizing

Sur consultation
Upon request

Déplacement de la cloche

Top Hat movement

Manuel ou motorisé
Manual or motorised

Déplacement du four

Furnace movement

Manuel ou motorisé

Manual or motorised

Inclus

Included

Régulateur programmateur classe 0.1

Programmable controller class 0.1

Sécurité

Security

Détection de surchauffe

Overheating detection

Ouverture porte

Furnace opening

Caractéristiques (Fr) Specifications (Eng)
Régulation point de rosée

Dry or wet gas: dew point control

Vide primaire ou secondaire

Medium or High vacuum

Gaz process : oxydant, neutre, hydrogéné, autres selon besoin
Process gas: oxidizing, neutral, hydrogenated, further gas as needed
Examples

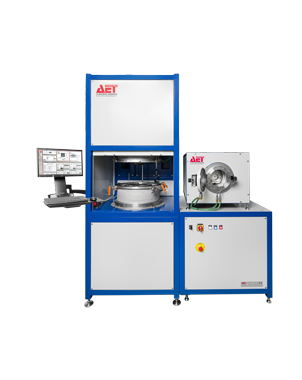

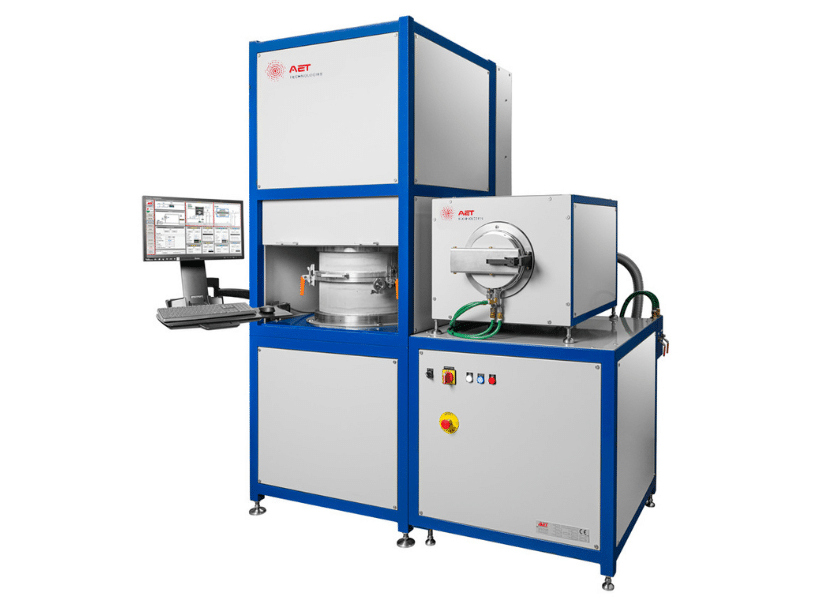

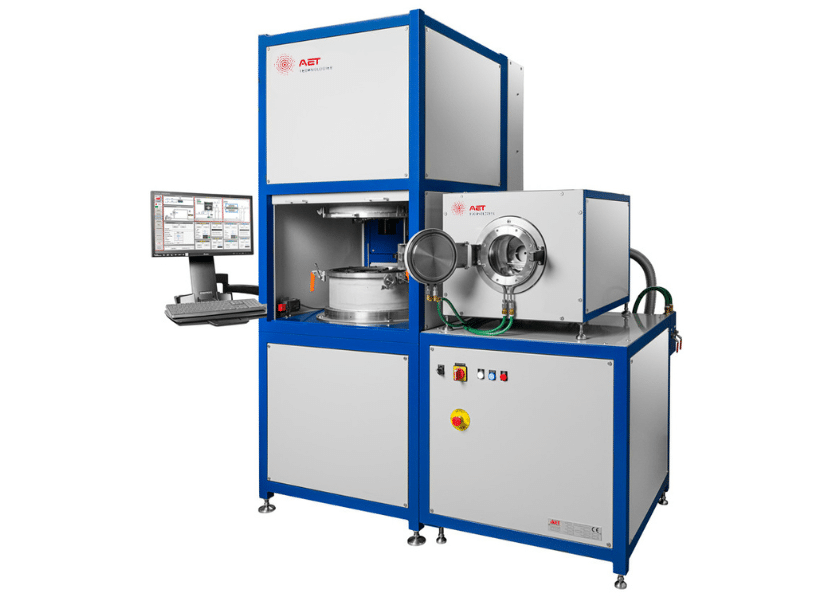

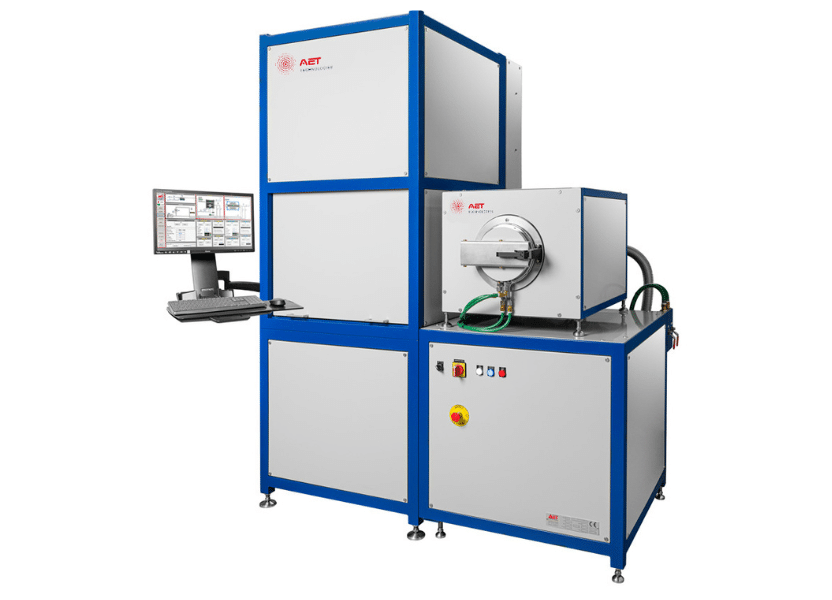

Rapid Thermal Process furnace 1900°C with polymerization furnace



Four 1 Recuit rapide (RTP) Rapid Thermal Process
Atmosphère de travail

Process

Vide secondaire ou gaz neutre High vacuum or neutral gas
Température Maximale

Maximum temperature

1900°C 1900°C
Montée en température

Temperature rise speed

Jusqu’à 2°C/s Up to 2°C/s
Enceinte

Chamber

Métallique refroidie Cooled metal
Isolation et élément chauffant

Insulation & heating element

Graphite Graphite
Dimension zone utile (Ø x H mm)

Sizing

150 x 50 mm 150 x 50 mm
Déplacement de la cloche

Top hat movement

Motorisé Motorised
Déplacement du four

Furnace movement

Motorisé Motorised
Pilotage

Control

IHM sur pc standard HCI on standard PC
Four 2  Four multi-zone de pyrolyse  Multi-zone pyrolysis furnace
Atmosphère de travail

Process

Air

Gaz neutre

Vide secondaire

Air

Neutral gas

High vacuum

Température Maximale

Maximum temperature

900°C 900°C
Montée en température

Temperature rise speed

Jusqu’à 15°C/min Up to 15°C/min
Chambre process

process Chamber

Quartz Quartz
Dimension chambre (Ø x H mm)

Chamber sizing

170 x 300 170 x 300
