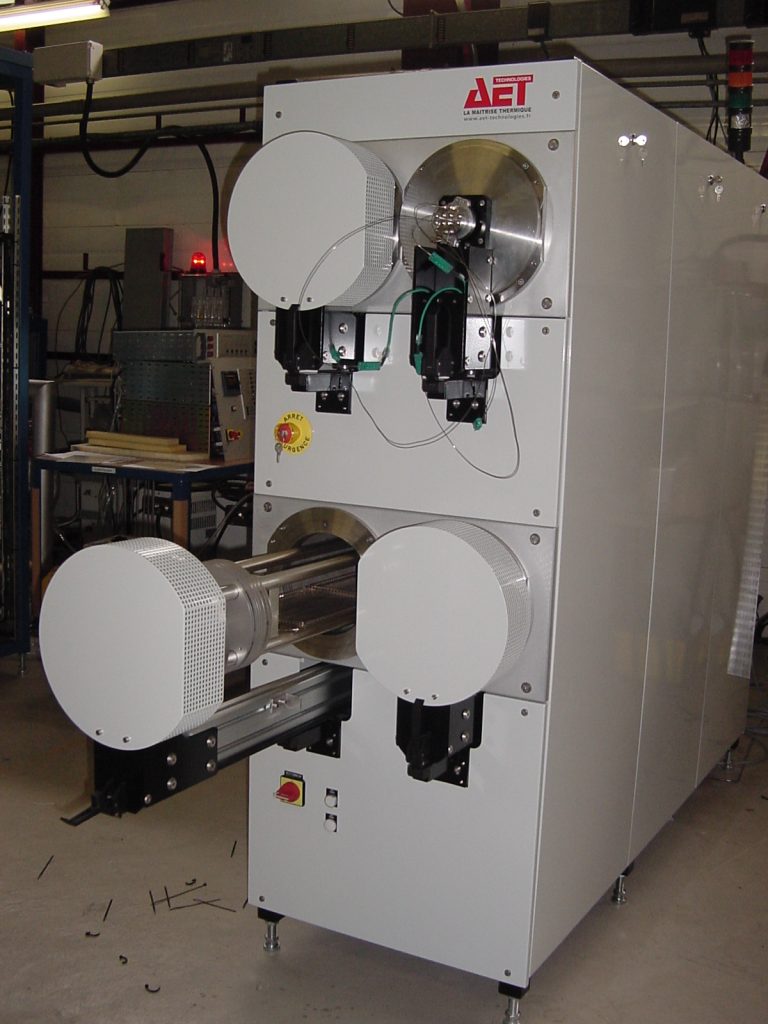

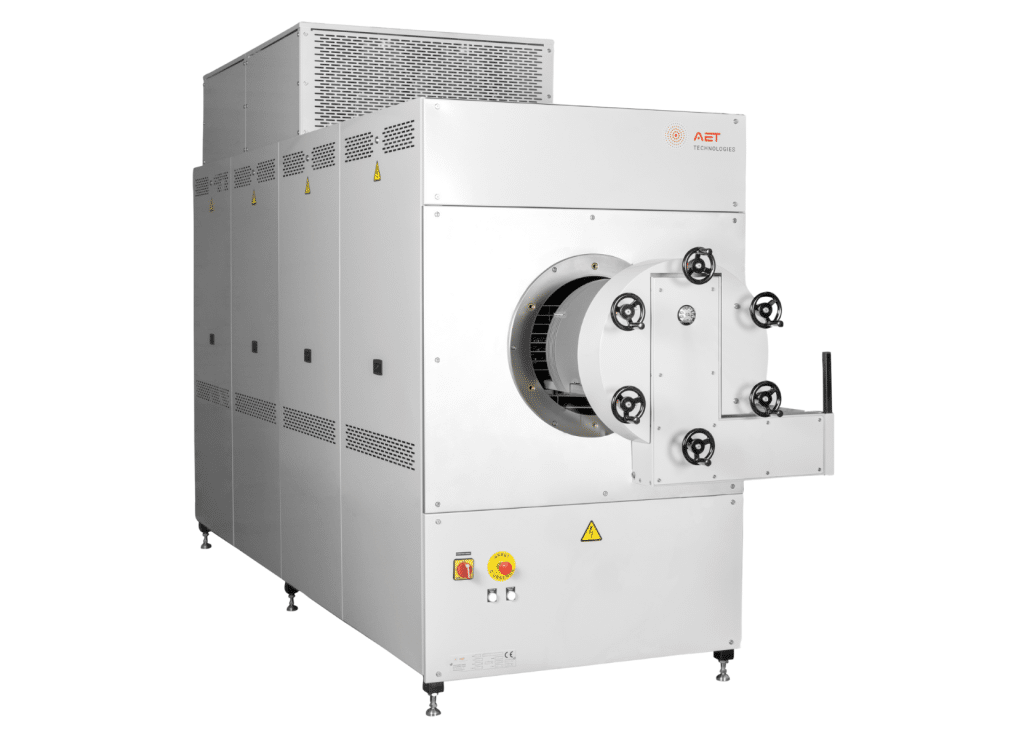

1600°C Multiprocess monochamber/multichamber furnace

Up to 1600°C Multiprocess monochamber/multichamber furnace

Discover our 1600°C Multiprocess monochamber/multichamber furnace. Our engineering expertise in heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a solution that is perfectly adapted to your needs.
We adapt to your expectations by providing you with numerous solutions for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Type de four

Type of furnace

Four étanche – Atmosphère propre

Sealed furnace – Clean atmosphere

Compatibilité Salle blanche

Clean Room Compatibility

Oui

Yes

Atmosphère de travail

Process

Air

Atmosphère contrôlé

vide

*selon température et chambre process

Air

Controlled atmosphere

vacuum

*depending on temperature and process chamber

Température Maximale

Maximum temperature

Jusqu’à 1600°C
Up to 1600°C

Températures maximales selon chambre process

Maximum temperatures by process chamber

950 – 1100 – 1280 – 1600

950 – 1100 – 1280 – 1600

Homogénéité Thermique

Thermal homogeneity

Excellente

Excellent



Type d’élément chauffant

Heating element type

métallique, céramique
metallic, ceramic



Ø tube laboratoire

Ø laboratory tube

50 à 300 mm
50 to 300 mm

Tailles de tube laboratoire en mm

Laboratory tube sizes in mm

150 – 200 – 250 – 300

150 – 200 – 250 – 300

Longueur zone homogène

Length homogeneous zone

500 – 750 – 1000
500 – 750 – 1000

Tube laboratoire*

Laboratory tube*



*sous réserve compatibilité matériaux, gaz, température

*subject to material, gas and temperature compatibility

métallique, quartz, SiC ou céramique

metallic, quartz, SiC or ceramic

Pression

Pressure

pression atmosphérique

régulation de pression < à la pression atmosphérique

vide

atmospheric pressure

pressure regulation < atmospheric pressure

vacuum

Type de vide

Vacuum level

Primaire, secondaire, ultra-vide

Medium, high and ultra-high

Taux de fuite

Leakage rate

1 10-8 mbar.l/s

1 10-8 mbar.l/s

Application

Application

Brasage, dégazage, scellement verre/métal, polymérisation, pyrolyse, recuit…

Brazing, degassing, glass/metal sealing, polymerization,rapid thermal process…

Chargement manuel

Manual loading

porte à charnière ou porte sur glissière

hinged or sliding door

Ergonomie du poste de chargement

Loading station ergonomics

Excellente (à l’extérieur de la chambre process)

Excellent (outside the process chamber)

Régulateur programmateur classe 0.1

Programmable controller class 0.1
Caractéristiques (Fr) Specifications (Eng)

Autres options

Régulation point de rosée

Dry or wet gas: dew point control

Vide primaire ou secondaire

Medium or High vacuum

Gaz process : oxydant, neutre, hydrogéné, autres selon besoin
Process gas: oxidizing, neutral, hydrogenated, further gas as needed
