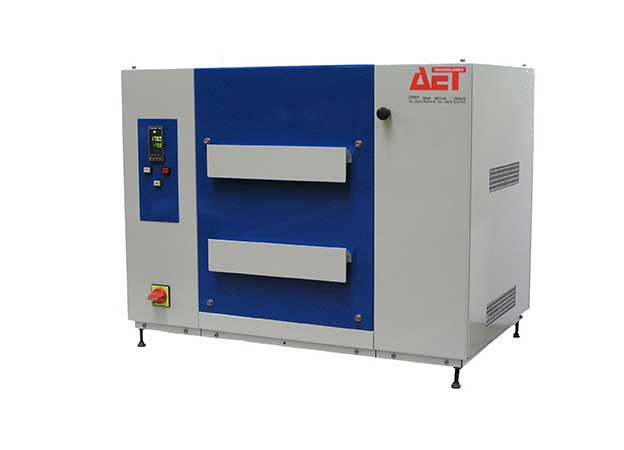

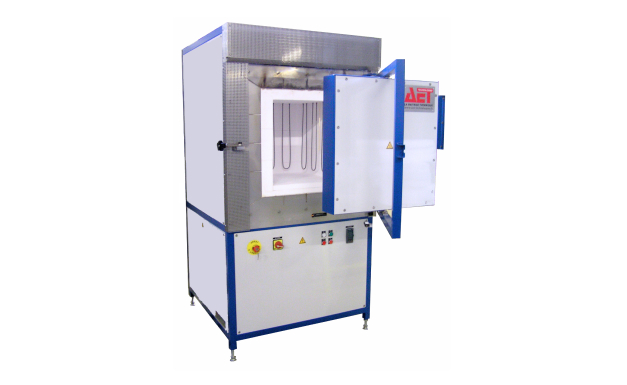

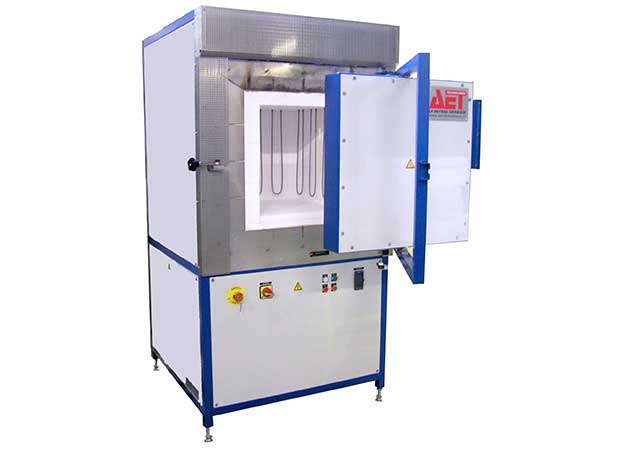

1450°C Controlled atmosphere chamber furnace

1450°C Controlled atmosphere chamber furnace

Discover our 1450°C Controlled atmosphere chamber furnace. Our engineering know-how concerning heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a response perfectly adapted to your needs.
We can adapt to your needs by presenting you with numerous models intended for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.



Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Atmosphère de travail

Sous atmosphère

Atmospheric furnace

Température Maximale

Maximum temperature

Jusqu’à 1450°C

Up to 1450°C

Vitesse de montée

Temperature rise speed

600°C/h

600°C/h

Homogénéité Thermique

Thermal homogeneity

< ±10°C

< ±10°C

Isolation Thermique

Thermal Insulation

Non classé

Unclassified

Type d’élément chauffant

Heating element type

SiC ou MoSi2 (Bisiliciure de Molybdène)

SiC or MoSi2

Type de gaz process

Process gas type

Air, azote N2, argon Ar

Air, Nitrogen N2, argon Ar

Type d’élément chauffant

Heating element type

CrLa03 (Chromite de lanthane) ou MoSi2 (Bisiliciure de Molybdène)

CrLa03 or MoSi2

Pression chambre process

Process chamber pressure

Légère surpression atmosphérique

Slight atmospheric overpressure

Taux oxygène résiduel (Hors process sous air)

Residual oxygen rate (excluding air process)

Très faible

Very low

Précision de régulation

Temperature control accuracy

±1°C

±1°C

Volume chambre

Chamber Volume

10 à 50 L

10 to 50 L

Autre dimensionnement

Further sizing

Sur consultation

Upon request

Ouverture

Opening

Porte à dégagement latéral manuelle

Manual side-release door

Inclus

Included

Régulateur programmateur classe 0.1

Programmable controller class 0.1

Sécurité

Security

Détection de surchauffe
Ouverture porte
Overheating detection
Door opening
Caractéristiques (Fr) Specifications (Eng)

Multiprogramme + enregistreur

Multiprogram + recorder

Supervision

IHM sur pc standard

HMI on standard PC

Autres options

Further options

Multiligne d’injection gaz process
Passage Thermocouple Instrumentation
Sole renforcée (pour charge lourde)
Multiline process gas injection
Thermocouple passage for instrumentation
Vault hatch: manual or controlled

About this furnace



Our engineering know-how concerning heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a response perfectly adapted to your needs.
We can adapt to your needs by presenting you with numerous models intended for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





1450°C Controlled atmosphere chamber furnace



Atmosphère de travail Controlled atmosphere
Application Traction, compression, fatigue
Type de four Metallic furnace
Température Maximale 1300°C
Homogénéité de température < ±2° on 30mm
Vitesse de montée 5°C/s
Niveau de vide secondaire Up to 10-6 mbar
Mesure de déformation Mechanical extensometer
1450°C Controlled atmosphere chamber furnace
