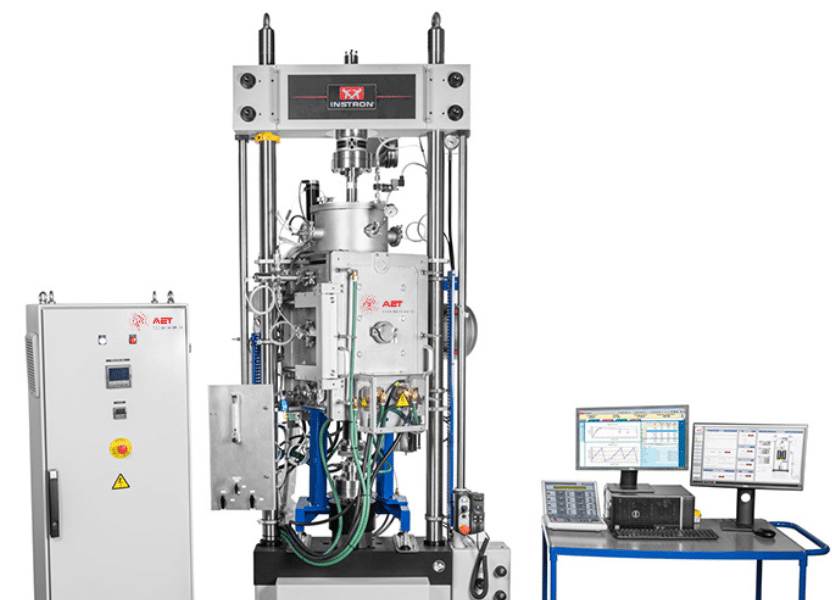

1500°C Furnace for traction, compression, bending, fatigue

1500°C Furnace for traction, compression, bending, fatigue

Discover our 500°C Furnace for traction, compression, bending, fatigue. Our engineering expertise in heating, atmosphere management, vacuum management, mechanical transfers, automation and regulation enables us to provide you with a solution that is perfectly adapted to your needs.
We adapt to your expectations by providing you with numerous solutions for research laboratories or industrial production.

All our equipment is CE compliant and is manufactured with materials that comply with current legislation.





Caractéristiques
Options
Caractéristiques (Fr) Specifications (Eng)

Atmosphère de travail

Process

Air
Atmosphère contrôlée
Vide primaire ou secondaire

Air
Controlled atmosphere
Medium or high vacuum

Température Maximale

Maximum processing temperature

Jusqu’à 1800°C

Up to 1800°C

Application
Application

Traction, compression, fatigue, flexion

Traction, compression, fatigue, bending

Dimensionnement
Sizing

Sur consultation

Upon request

Inclus

Included

Ingénierie complète d’intégration du four dans une machine d’essai mécanique

Complete engineering for the integration of the furnace into a mechanical testing machine

Caractéristiques (Fr) Specifications (Eng)

Multiprogramme + enregistreur

Multiprogram + recorder

Supervision

HM sur pc standard

HCI on standard PC

Autres options

Gaz sec ou humide : régulation point de rosée

Dry or wet gas: dew point control

Passage pour extensomètre par contact

Passage for contact extensometer

Support mécanique autonome avec possibilité de régler la hauteur du four par rapport à la machine d’essai mécanique

Stand-alone mechanical support with the possibility to adjust the height of the furnace in relation to the mechanical testing machine

Bouchons thermiques haut et bas

Top and bottom thermal plugs

Coffret électrique de régulation

Electrical control box

Examples

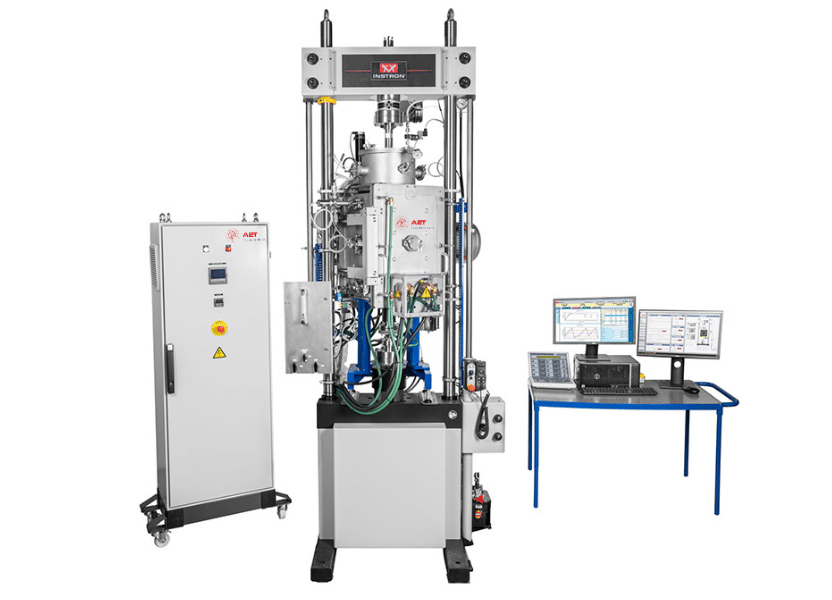

1500°C Furnace for traction, compression, bending, fatigue

Atmosphère de travail

Process

Atmosphère contrôlée Controlled Atmophere
Application

Application

Traction, compression, fatigue, flexion Traction, compression, fatigue, bending
Chambre process

Process chamber

Métallique Metallic
Température Maximale

Maximum temperature

1500°C 1500°C
Homogénéité thermique

Thermal homogeneity

< ±2° sur 30mm < ±2° on 30mm
Vitesse de montée

Temperature rise speed

5°C/s 5°C/s
Niveau de vide secondaire

High vacuum level

Jusqu’à 10-6 mbar Up to 10-6 mbar
Mesure de déformation

Deformation measurement

Extensométrie mécanique Mechanical extensometry



1500°C Furnace for traction, compression, bending, fatigue
